Home › Products › Vacuum Components ›All Vacuum Valves

Vacuum Valves

Showing 52 Products
070131
070131

Pilot operated 3-way vacuum valve

  • Valve Type: 3 way valve
  • Orifice Size: 8.5 mm
  • Port Size: G1/4"
  • Configuration: 3 way
  • Max Flow: 3.5 SCFM
  • Connector:
$282.48
Add
070231
070231

Pilot operated 3-way vacuum valve

  • Valve Type: 3 way valve
  • Orifice Size: 11.5 mm
  • Port Size: G3/8"
  • Configuration: 3 way
  • Max Flow: 5.9 SCFM
  • Connector:
$326.34
Add
070331
070331

Pilot operated 3-way vacuum valve

  • Valve Type: 3 way valve
  • Orifice Size: 15 mm
  • Port Size: G1/2"
  • Configuration: 3 way
  • Max Flow: 11.8 SCFM
  • Connector:
$430.52
Add
070431
070431

Pilot operated 3-way vacuum valve

  • Valve Type: 3 way valve
  • Orifice Size: 20 mm
  • Port Size: G3/4"
  • Configuration: 3 way
  • Max Flow: 23.5 SCFM
  • Connector:
$691.07
Add
070531
070531

Pilot operated 3-way vacuum valve

  • Valve Type: 3 way valve
  • Orifice Size: 25 mm
  • Port Size: G1"
  • Configuration: 3 way
  • Max Flow: 53.0 SCFM
  • Connector:
$754.15
Add

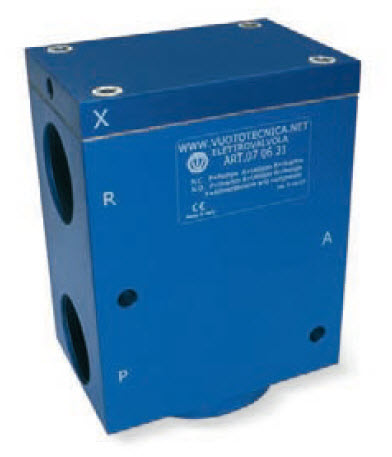

070631
070631

Pilot operated 3-way vacuum valve

  • Valve Type: 3 way valve
  • Orifice Size: 40 mm
  • Port Size: G1-1/2"
  • Configuration: 3 way
  • Max Flow: 105.9 SCFM
  • Connector:
$1,312.00
Add

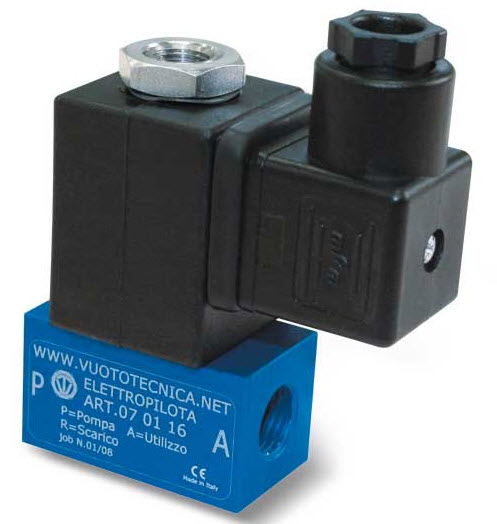

070116
070116

3-way Vacuum Solenoid Pilot Valve, 3/2 NC, SOLENOID AND CONNECTOR SOLD SEPARATELY

  • Valve Type: 3 way NC
  • Orifice Size: 6 mm
  • Port Size: G1/4"
  • Configuration: 3 way
  • Max Flow: 2.5 SCFM
  • Connector:
$239.95
Add

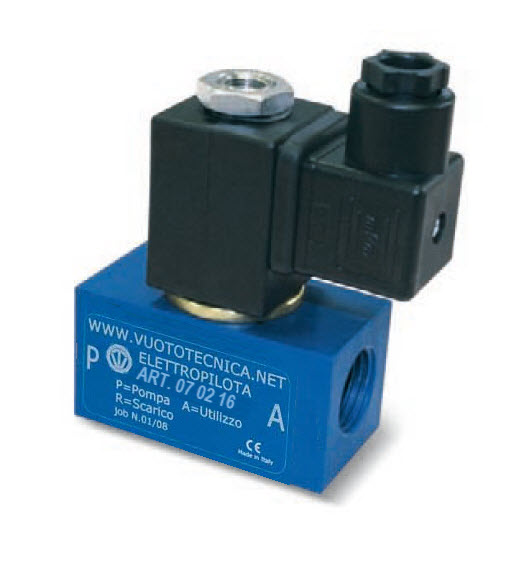

070216
070216

3-way Vacuum Solenoid Pilot Valve, 3/2 NC, SOLENOID AND CONNECTOR SOLD SEPARATELY

  • Valve Type: 3 way NC
  • Orifice Size: 10 mm
  • Port Size: G3/8"
  • Configuration: 3 way
  • Max Flow: 5.0 SCFM
  • Connector:
$272.87
Add
070316
070316

3-way Vacuum Solenoid Pilot Valve, 3/2 NC, SOLENOID AND CONNECTOR SOLD SEPARATELY

  • Valve Type: 3 way NC
  • Orifice Size: 12 mm
  • Port Size: G1/2"
  • Configuration: 3 way
  • Max Flow: 6.0 SCFM
  • Connector:
$346.89
Add
070120
070120

2-way Vacuum Solenoid Pilot Valve, 2/2 NC, SOLENOID AND CONNECTOR SOLD SEPARATELY

  • Valve Type: 2 way valve
  • Orifice Size: 6 mm
  • Port Size: G1/4"
  • Configuration: 2 way
  • Max Flow: 2.5 SCFM
  • Connector:
$218.02
Add
070220
070220

2-way Vacuum Solenoid Pilot Valve, 2/2 NC, SOLENOID AND CONNECTOR SOLD SEPARATELY

  • Valve Type: 2 way valve
  • Orifice Size: 10 mm
  • Port Size: G3/8"
  • Configuration: 2 way
  • Max Flow: 5.0 SCFM
  • Connector:
$250.94
Add

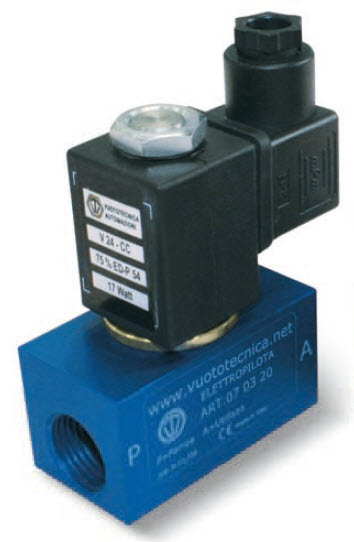

070320
070320

2-way Vacuum Solenoid Pilot Valve, 2/2 NC, SOLENOID AND CONNECTOR SOLD SEPARATELY

  • Valve Type: 2 way valve
  • Orifice Size: 12 mm
  • Port Size: G1/2"
  • Configuration: 2 way
  • Max Flow: 6.0 SCFM
  • Connector:
$324.96
Add
070111
070111

Servo-Controlled 3-Way Vacuum Solenoid Valves, Servo-Control Pressure PSI (58-101), SOLENOID AND CONNECTOR SOLD SEPARATELY

  • Valve Type: 3 way valve
  • Orifice Size: 8.5
  • Port Size: G1/4"
  • Configuration: 3 way
  • Max Flow: 3.5 SCFM
  • Connector:
$357.88
Add
070211
070211

Servo-Controlled 3-Way Vacuum Solenoid Valves, Servo-Control Pressure PSI (58-101), SOLENOID AND CONNECTOR SOLD SEPARATELY

  • Valve Type: 3 way valve
  • Orifice Size: 11.5 mm
  • Port Size: G3/8"
  • Configuration: 3 way
  • Max Flow: 6.0 SCFM
  • Connector:
$397.65
Add

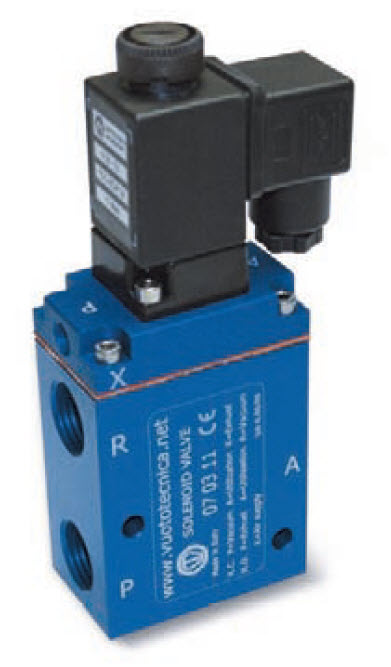

070311
070311

Servo-Controlled 3-Way Vacuum Solenoid Valves, Servo-Control Pressure PSI (87-116), SOLENOID AND CONNECTOR SOLD SEPARATELY

  • Valve Type: 3 way valve
  • Orifice Size: 15 mm
  • Port Size: G1/2"
  • Configuration: 3 way
  • Max Flow: 12.0 SCFM
  • Connector:
$501.83
Add

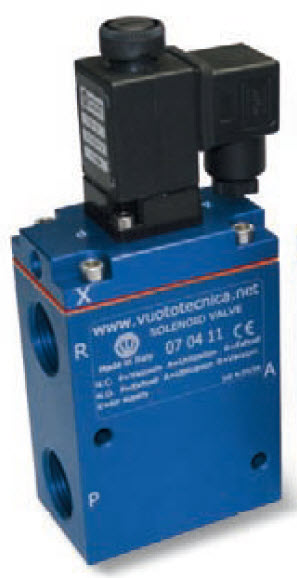

070411
070411

Servo-Controlled 3-Way Vacuum Solenoid Valves, Servo-Control Pressure PSI (87-116), SOLENOID AND CONNECTOR SOLD SEPARATELY

  • Valve Type: 3 way valve
  • Orifice Size: 20 mm
  • Port Size: G3/4"
  • Configuration: 3 way
  • Max Flow: 23.5 SCFM
  • Connector:
$762.38
Add
070611
070611

Servo-Controlled 3-Way Vacuum Solenoid Valves, Servo-Control Pressure PSI (87-116), SOLENOID AND CONNECTOR SOLD SEPARATELY

  • Valve Type: 3 way valve
  • Orifice Size: 40 mm
  • Port Size: G1-1/2"
  • Configuration: 3 way
  • Max Flow: 106.0 SCFM
  • Connector:
$1,508.17
Add

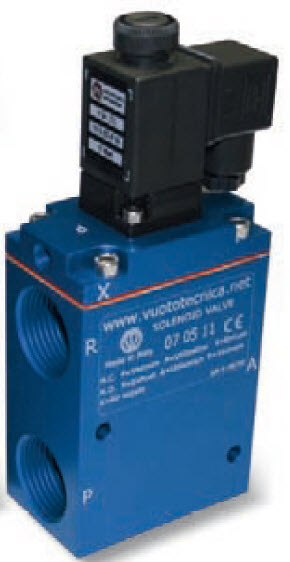

070511
070511

Servo-Controlled 3-Way Vacuum Solenoid Valves, Servo-Control Pressure PSI (87-116), SOLENOID AND CONNECTOR SOLD SEPARATELY

  • Valve Type: 3 way valve
  • Orifice Size: 25 mm
  • Port Size: G1"
  • Configuration: 3 way
  • Max Flow: 53.0 SCFM
  • Connector:
$825.46
Add

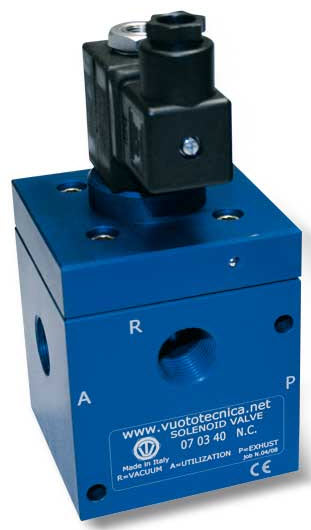

070340NC
070340NC

Direct Acting 3-Way Vacuum Solenoid Valves, Normally Closed, SOLENOID AND CONNECTOR SOLD SEPARATELY

  • Valve Type: 3 way NC
  • Orifice Size: 15 mm
  • Port Size: G1/2"
  • Configuration: 3 way
  • Max Flow: 12.0 SCFM
  • Connector:
$699.30
Add
070340NO
070340NO

Direct Acting 3-Way Vacuum Solenoid Valves, Normally Opened, SOLENOID AND CONNECTOR SOLD SEPARATELY

  • Valve Type: 3 way NO
  • Orifice Size: 15 mm
  • Port Size: G1/2"
  • Configuration: 3 way
  • Max Flow: 12.0 SCFM
  • Connector:
$699.30
Add
