In-Line Strainers

Vacmotion's in-line strainers have been the industry standard for cost-effective straining and filtering since they were introduced over thirty years ago. Applications are wide-ranging and include: agricultural sprayers, pressure washers, floor scrubbers, drinking water pre-filters, medical devices, car washes, marine raw water filters, vacuum pumps and more.

Strainer Series

Low Profile Series

Height: 2.67"
Filter Area: 3.85 sq. inches

Mini Series

Height: 3.75"
Filter Area: 7.71 sq. inches

Regular Series

Height: 5.38" to 5.75"
Filter Area: 17.33 sq. inches

Large Series

Height: 6.4" to 8.10"
Filter Area: 29 - 38 sq. inches

Suction Line Strainers

Suction line strainers provide dependable protection for pumps and equipment. Wide variety so there is a model for most applications.

Replacement Parts & Accessories

VacMotion stocks large quantities of spare parts for inline strainers including replacement bowls, gaskets, screens and mounting brackets. Screens are available in 20, 50, 80, 100 and 250 mesh (also 10 and 15 micron). Standard screen materials are 304 stainless steel mesh, Polypropylene mesh and porous Polyethylene.

Replacement Screens

Stainless steel, polypropylene, and polyethylene screens available in multiple mesh sizes.

Replacement Bowls

Clear shatterproof bowls available for all strainer series.

Replacement Gaskets

Quality gaskets for a proper seal. Material types include Buna, Viton, and EPDM.

Mounting Brackets

Secure your in-line strainers safely to your machinery or walls.

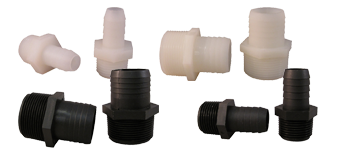

Hoes Barbs

Perfect Hose barbs yo work with your hose conenctions.

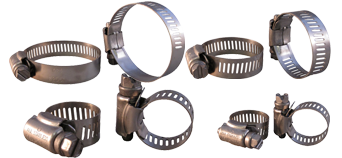

Hose Clamps

Quality stainless steel hose clamps to complete your application needs.

Technical Reference

Flow Chart for Strainers

Click to view the detailed flow charts for our various strainers.

Wire Mesh Specifications

Detailed breakdown of mesh sizes and micron ratings.

Temperature & Material Ratings

Usage and material guide for strainer components.

WIRE MESH SPECIFICATIONS

Mesh Terms

Mesh: Number of wires per linear inch measured from center of wire to center of wire.

Wire Diameter: Normally referred to in decimal parts of an inch, a determining factor in the mesh count.

Opening: The dimension between parallel adjacent wires, usually in decimal parts of an inch or microns.

Open Area: The percentage of opening of a given mesh utilizing a given wire diameter.

Conversion Factors

Inches to microns:
Inches × 25,400 = microns

Micron to inches:
Microns / 25,400 = inches

Opening width:

Opening =

1 - DM M

(D = Wire Dia., M = mesh)

Percentage of open area:

% of open area = (OM)² × 100
(O = opening, M = mesh)

Mesh	Wire Diameter	Opening Width	% of Open Area	Micron
165 x 1400	.0028 x .0016	–	–	10
165 x 800	.0029 x .0020	–	–	15
20	.014	.036	51.8%	915
50	.008	.012	36.0%	304
80	.005	.007	31.4%	178
100	.0055	.003	30.3%	80
250	.0016	.0024	36%	40

USAGE AND MATERIAL GUIDE: STRAINER COMPONENTS

USAGE	TOPS & BOWLS (Polypropylene)	TOPS & BOWLS (6/6 Nylon)	BOWLS ONLY (Nylon Transparent)
Material	20% glass filled Polypropylene	6/6 Nylon	Nylon Transparent
Color	Black	White	Transparent
Pressure Rating	150 PSI@70°F 100 PSI@125°F	150 PSI@70°F 100 PSI@125°F	150 PSI@70°F 100 PSI@125°F
Chemical Compatibility*	Resistant to mineral acids, salt solutions and solvents.	Resistant to hydrocarbons, aromatic solvents, fuels, motor oils and refrigerants.	Resistant to solvents, alkalis and salt solutions. Not for use with alcohol
