Home › Products › Suction Cups ›Bellows › 25B.055.001.02R
Product Image
Enlarge Product Image
Enlarge Dimensional Drawing

25B.055.001.02R

55 mm multi-bellow suction cup, silicone
  • Style: Bellows
  • Material: Silicone
  • Thread Size: None
  • Outside Diameter: 55.0
  • Internal Cleats: No
  • Number of Bellows: 2.5
  • Color: Red
  • Weight: .0400(lbs)
  • Includes Fitting?: No
✓ Recommended Replacement For: VBU55-S
$33.00 ea.
In Stock!
Add
Additional Information and Specifications

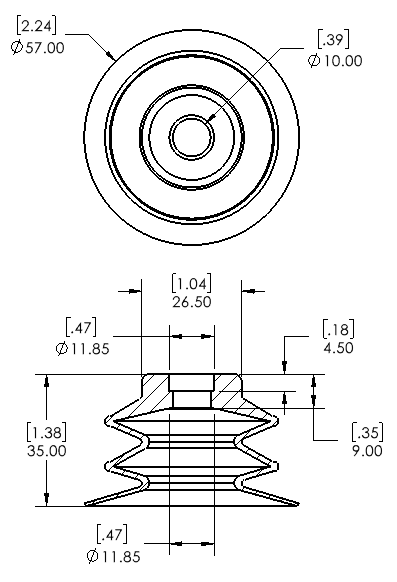

Dimensional Drawing

Download this product's CAD files

Free Account Required

We provide high-quality 3D CAD models for our registered users. Please log in or create a free account to access these downloads.

*Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.

Level of Vacuum (inHg)HorizontalVertical
6"Hg4.42 lbs.2.21 lbs.
18"Hg13.26 lbs.6.63 lbs.
27"Hg19.89 lbs.9.94 lbs.
Material NameWear ResistanceOilWeather & OzoneTemperature Range
Silicone Good Good Excellent -94 to 392 °F (-70 to 200 °C)
