Home › Products › Suction Cups ›Flat › 10F.016.006.02
Product Image
Enlarge Product Image
Enlarge Dimensional Drawing

10F.016.006.02

16mm flat silicone suction cup with cleats
  • Style: Flat
  • Material: Silicone
  • Thread Size: None
  • Outside Diameter: 16.0
  • Internal Cleats: Yes
  • Color: Translucent
  • Weight: .0020(lbs)
  • Includes Fitting?: No
✓ Recommended Replacement For: SFF 15 SI-55 SC040
$6.66 ea.
In Stock!
Add

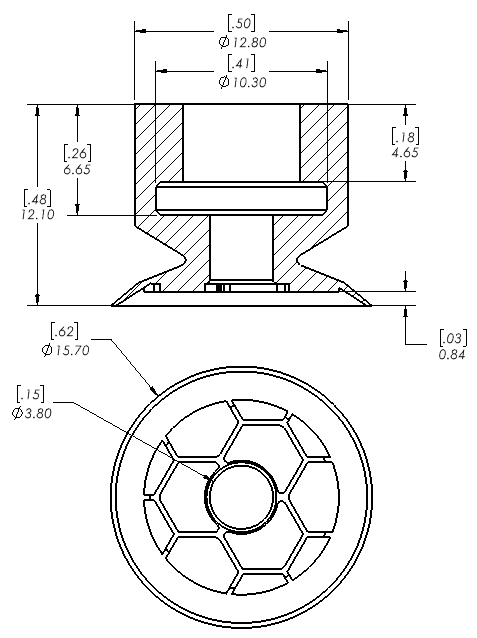

Dimensional Drawing

Download this product's CAD files

Download .ZIP

*Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.

Level of Vacuum (inHg)HorizontalVertical
6"Hg0.37 lbs.0.19 lbs.
18"Hg1.12 lbs.0.56 lbs.
27"Hg1.68 lbs.0.84 lbs.
Material NameWear ResistanceOilWeather & OzoneTemperature Range
Silicone Good Good Excellent -94 to 392 °F (-70 to 200 °C)
No matching fittings or accessories found for this item.
×
×
