10F.039.100.02

39mm flat FDA Silicone suction cup with cleats (1025)
  • Style: Flat
  • Material: Silicone
  • Thread Size: None
  • Outside Diameter: 39.0
  • Internal Cleats: Yes
  • Color: Translucent
  • Weight: .0145(lbs)
  • Includes Fitting?: No
✓ Recommended Replacement For: VC-37 1/4 H
$5.08 ea.
In Stock!
Add

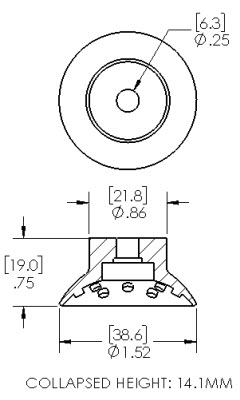

Dimensional Drawing

Download this product's CAD files

Download .ZIP

*Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.

Level of Vacuum (inHg)HorizontalVertical
6"Hg2.22 lbs.1.11 lbs.
18"Hg6.67 lbs.3.33 lbs.
27"Hg10.00 lbs.5.00 lbs.
Material NameWear ResistanceOilWeather & OzoneTemperature Range
Silicone Good Good Excellent -94 to 392 °F (-70 to 200 °C)
