10F.210.001.01

210mm flat NBR suction cup with G1/2" female fitting
  • Style: Flat
  • Material: NBR
  • Thread Size: 1/2" female
  • Outside Diameter: 210.0
  • Internal Cleats: Yes
  • Color: Grey
  • Weight: 1.635(lbs)
  • Includes Fitting?: Yes
✓ Recommended Replacement For: SPU 210 NBR-55 G1/2-IG, 10.01.01.01092
$280.00 ea.
In Stock!
Add
Additional Information and Specifications

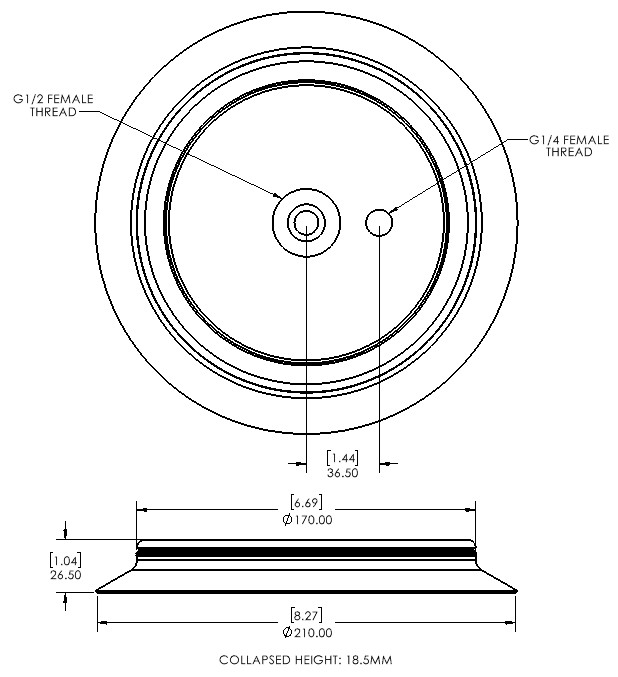

Dimensional Drawing

Download this product's CAD files

Free Account Required

We provide high-quality 3D CAD models for our registered users. Please log in or create a free account to access these downloads.

*Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.

Level of Vacuum (inHg)HorizontalVertical
6"Hg64.42 lbs.32.21 lbs.
18"Hg193.27 lbs.96.64 lbs.
27"Hg289.91 lbs.144.95 lbs.
Material NameWear ResistanceOilWeather & OzoneTemperature Range
NBR Good Good Excellent -40 to 266 °F (-40 to 130 °C)
No matching fittings or accessories found for this item.
×
×
