10.065.670.01

65mm flat NBR suction cup with cleats
  • Style: Flat
  • Material: NBR
  • Thread Size: None
  • Outside Diameter: 65.0
  • Internal Cleats: Yes
  • Color: Black
  • Weight: .0190(lbs)
  • Includes Fitting?: No
$19.03 ea.
Add
Additional Information and Specifications

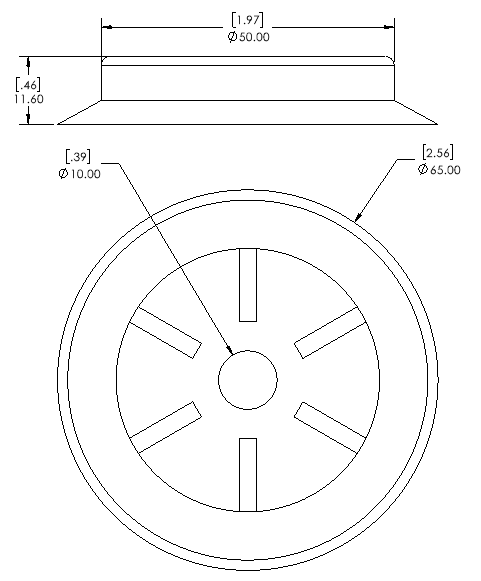

Dimensional Drawing

No CAD files available for this product

*Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.

Level of Vacuum (inHg)HorizontalVertical
6"Hg6.17 lbs.3.09 lbs.
18"Hg18.52 lbs.9.26 lbs.
27"Hg27.77 lbs.13.89 lbs.
Material NameWear ResistanceOilWeather & OzoneTemperature Range
NBR Good Good Excellent -40 to 266 °F (-40 to 130 °C)
