10FO.125X25.001.01

125mm x 25mm flat oval suction cup with 1/8" NPT center port and 1/4-20 UNC tapped holes (4 places)
  • Style: Oval
  • Material: NBR
  • Thread Size: 1/8" female
  • Outside Diameter: 125.0
  • Internal Cleats: No
  • Color: Black
  • Weight: .1235(lbs)
  • Includes Fitting?: No
✓ Recommended Replacement For: VC-188JC
$14.53 ea.
In Stock!
Add

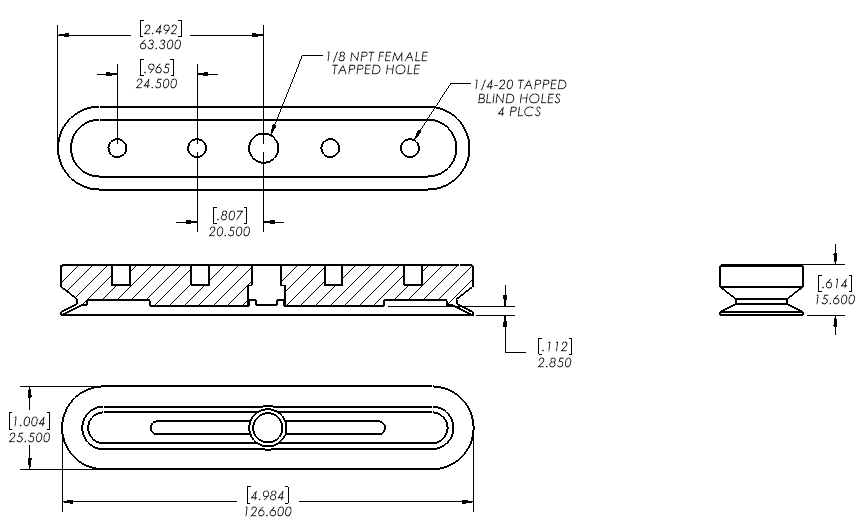

Dimensional Drawing

Download this product's CAD files

Download .ZIP

*Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.

Level of Vacuum (inHg)HorizontalVertical
6"Hg3.04 lbs.1.52 lbs.
18"Hg13.70 lbs.6.85 lbs.
27"Hg20.54 lbs.10.27 lbs.
Material NameWear ResistanceOilWeather & OzoneTemperature Range
NBR Good Good Excellent -40 to 266 °F (-40 to 130 °C)
