Home › Products › Suction Cups ›Flat › 10.027.213.02
Product Image

10.027.213.02

27 mm flat suction cup, silicone
  • Style: Flat
  • Material: Silicone
  • Thread Size: None
  • Outside Diameter: 27.0
  • Internal Cleats: No
  • Color: Translucent
  • Weight: .0015(lbs)
  • Includes Fitting?: No
$6.09 ea.
Add
Additional Information and Specifications

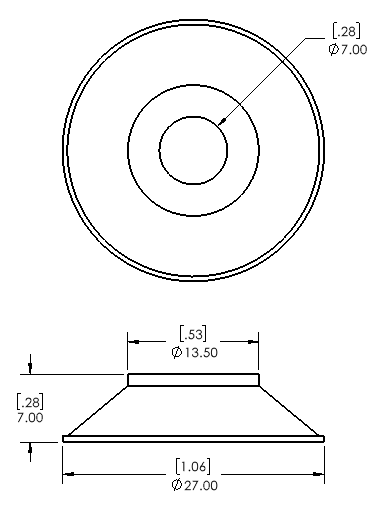

Dimensional Drawing

No CAD files available for this product

*Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.

Level of Vacuum (inHg)HorizontalVertical
6"Hg1.06 lbs.0.53 lbs.
18"Hg3.19 lbs.1.60 lbs.
27"Hg4.79 lbs.2.40 lbs.
Material NameWear ResistanceOilWeather & OzoneTemperature Range
Silicone Good Good Excellent -94 to 392 °F (-70 to 200 °C)
No matching fittings or accessories found for this item.
×
×
