VOB40X95P-3060-G38F

40mm x 95mm oval bellows suction cup with G3/8 female fitting. dual durometer Polyurethane (30/60)
  • Style: Oval
  • Material: Polyurethane
  • Thread Size: 3/8" female
  • Outside Diameter: 40.0
  • Internal Cleats: No
  • Number of Bellows: 1.5
  • Color: Blue
  • Weight: .1515(lbs)
  • Includes Fitting?: Yes
✓ Recommended Replacement For: OB35X90P.5K.N40W, 0109857
$69.95 ea.
In Stock!
Add

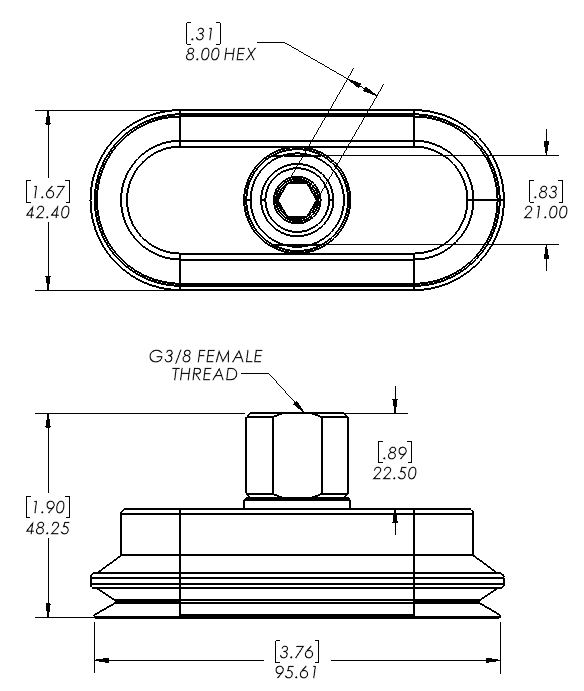

Dimensional Drawing

Download this product's CAD files

Download .ZIP

*Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.

Level of Vacuum (inHg)HorizontalVertical
6"Hg3.70 lbs.1.85 lbs.
18"Hg16.65 lbs.8.33 lbs.
27"Hg24.98 lbs.12.49 lbs.
Material NameWear ResistanceOilWeather & OzoneTemperature Range
Polyurethane Excellent Excellent Excellent -13 to 176 °F (-25 to 80 °C)
