SB25P-60G-18M

26 mm single bellow, green polyurethane, 60 durometer, with 1/8 Male NPT fitting

Style: Bellows
Material: Polyurethane
Thread Size: 1/8" male
Outside Diameter: 26.0
Internal Cleats: Yes
Number of Bellows: 1.5
Color: Green
Weight: .0100(lbs)
Includes Fitting?: Yes

✓ Recommended Replacement For: B25XP.4E.02AC

$18.43 ea.

Quantity: Add

Download this product's CAD files

Download .ZIP

*Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.

Level of Vacuum (inHg)	Horizontal	Vertical
6"Hg	0.99 lbs.	0.49 lbs.
18"Hg	2.96 lbs.	1.48 lbs.
27"Hg	4.44 lbs.	2.22 lbs.

Material Name	Wear Resistance	Oil	Weather & Ozone	Temperature Range
Polyurethane	Excellent	Excellent	Excellent	-13 to 176 °F (-25 to 80 °C)

Fitting Image

Item#: 401.037

1/8 male NPT fitting with mesh filter (P-series 20/30)

Material: Aluminum | Thread Size: 1/8" Male NPT | Weight: .0055 lbs

★ INCLUDED WITH CUP

View Details

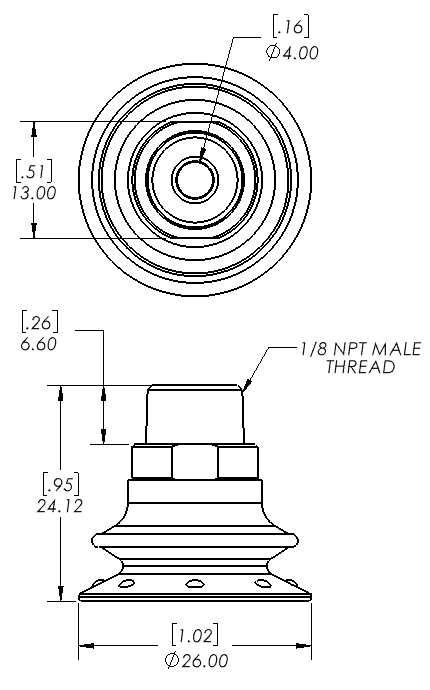

Dimensional Drawing

SB25P-60G-18M

Download this product's CAD files

Item#: 401.037
