SB25P-60G-G18M-LP

26 mm single bellow, green polyurethane, 60 durometer, with Low Profile G1/8 Male fitting
  • Style: Bellows
  • Material: Polyurethane
  • Thread Size: 1/8" male
  • Outside Diameter: 26.0
  • Internal Cleats: Yes
  • Number of Bellows: 1.5
  • Color: Green
  • Weight: .0085(lbs)
  • Includes Fitting?: Yes
✓ Recommended Replacement For: B25XP.4E.02AF
$18.24 ea.
Add

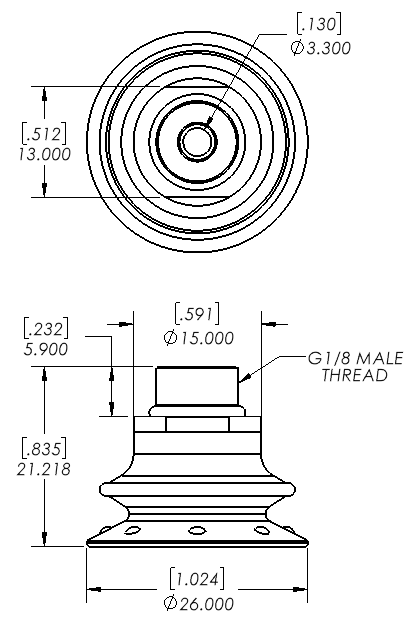

Dimensional Drawing

Download this product's CAD files

Download .ZIP

*Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.

Level of Vacuum (inHg)HorizontalVertical
6"Hg0.99 lbs.0.49 lbs.
18"Hg2.96 lbs.1.48 lbs.
27"Hg4.44 lbs.2.22 lbs.
Material NameWear ResistanceOilWeather & OzoneTemperature Range
Polyurethane Excellent Excellent Excellent -13 to 176 °F (-25 to 80 °C)
