10F.010.003.01

10mm flat NBR suction cup
  • Style: Flat
  • Material: NBR
  • Thread Size: None
  • Outside Diameter: 10.0
  • Internal Cleats: No
  • Color: Black
  • Weight: .0003(lbs)
  • Includes Fitting?: No
$4.11 ea.
In Stock!
Add

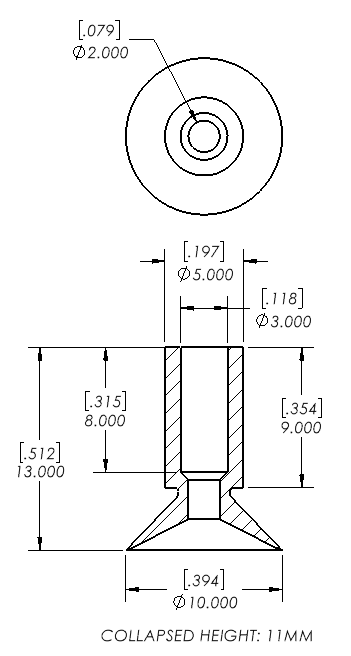

Dimensional Drawing

Download this product's CAD files

Download .ZIP

*Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.

Level of Vacuum (inHg)HorizontalVertical
6"Hg0.15 lbs.0.07 lbs.
18"Hg0.44 lbs.0.22 lbs.
27"Hg0.66 lbs.0.33 lbs.
Material NameWear ResistanceOilWeather & OzoneTemperature Range
NBR Good Good Excellent -40 to 266 °F (-40 to 130 °C)
No matching fittings or accessories found for this item.
×
×
