45B.050.100.02

50mm multiple bellows suction cup, translucent silicone, 1/2 BSP
  • Style: Bellows
  • Material: Silicone
  • Thread Size: 1/2" female
  • Outside Diameter: 50.0
  • Internal Cleats: No
  • Number of Bellows: 4.5
  • Color: Translucent
  • Weight: .0500(lbs)
  • Includes Fitting?: No
✓ Recommended Replacement For: VC-130E 1/2 BSP
$10.75 ea.
In Stock!
Add

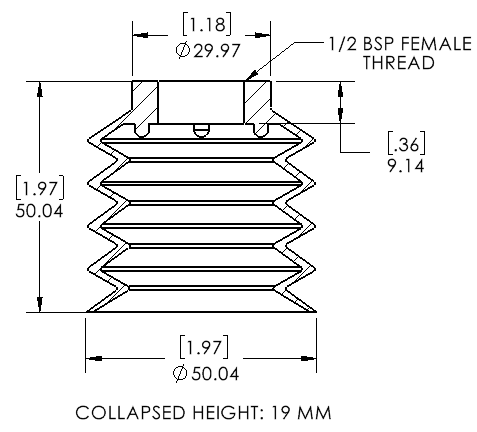

Dimensional Drawing

Download this product's CAD files

Download .ZIP

*Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.

Level of Vacuum (inHg)HorizontalVertical
6"Hg3.65 lbs.1.83 lbs.
18"Hg10.96 lbs.5.48 lbs.
27"Hg16.43 lbs.8.22 lbs.
Material NameWear ResistanceOilWeather & OzoneTemperature Range
Silicone Good Good Excellent -94 to 392 °F (-70 to 200 °C)
No matching fittings or accessories found for this item.
×
×
