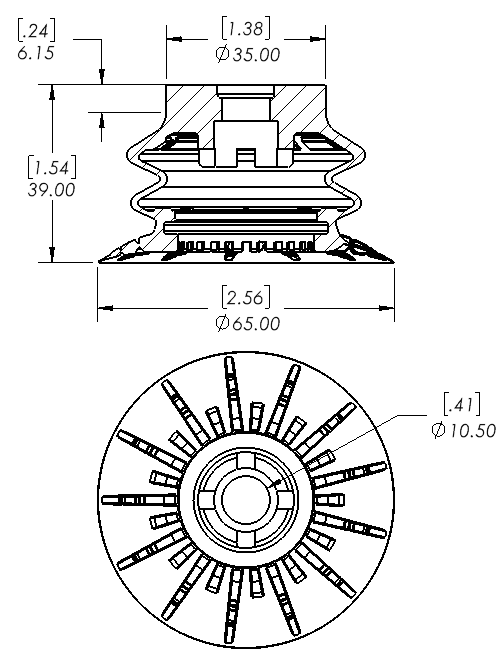

Enlarge Dimensional Drawing

MB65P-3060T

65mm 2.5 bellows dual durometer Polyurethane suction cup, thin lip
  • Style: Bellows
  • Material: Polyurethane
  • Thread Size: None
  • Outside Diameter: 65.0
  • Internal Cleats: Yes
  • Number of Bellows: 2.5
  • Color: Blue
  • Weight: .0610(lbs)
  • Includes Fitting?: No
$41.00 ea.
In Stock!
Add
Additional Information and Specifications
Dimensional Drawing

Download this product's CAD files

Free Account Required

We provide high-quality 3D CAD models for our registered users. Please log in or create a free account to access these downloads.

*Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.

Level of Vacuum (inHg)HorizontalVertical
6"Hg6.17 lbs.3.09 lbs.
18"Hg18.52 lbs.9.26 lbs.
27"Hg27.77 lbs.13.89 lbs.
Material NameWear ResistanceOilWeather & OzoneTemperature Range
Polyurethane Excellent Excellent Excellent -13 to 176 °F (-25 to 80 °C)
25050-21
Fitting Image

Item#: 25050-21

G3/8 female fitting with filter screen for P series 50 cups

Material: Aluminum   |   Thread Size: G3/8" female   |   Weight: 0.020 lbs
$6.46 each
Drawing
Dimensional Drawing
401.053
Fitting Image

Item#: 401.053

Fitting G1/8 female, 50, with mesh filter (05AG)

Material: Aluminum   |   Thread Size: G1/8" female   |   Weight: .0315 lbs
$8.16 each
Drawing
Dimensional Drawing
401.004
Fitting Image

Item#: 401.004

G1/8 Female flange fitting

Material: Aluminum   |   Thread Size: G1/8" female   |   Weight: .0190 lbs
$3.75 each
Drawing
Dimensional Drawing
403.011
Fitting Image

Item#: 403.011

G 3/8 male fitting with filter screen for P series 50 cups

Material: Nickel Plated Brass   |   Thread Size: G 3/8" male   |   Weight: .0280 lbs
$6.93 each
Drawing
Dimensional Drawing
402.015
Fitting Image

Item#: 402.015

G1/4 male fitting for 50 series cups

Material: Aluminum   |   Thread Size: G1/4" male   |   Weight: .025 lbs
$6.93 each
Drawing
Dimensional Drawing
403.012
Fitting Image

Item#: 403.012

3/8 male NPT fitting with filter screen for P series 50 cups

Material: Aluminum   |   Thread Size: 3/8" male   |   Weight: .0310 lbs
$6.93 each
Drawing
Dimensional Drawing
×
×
