15B.051.101.01

51mm single bellows NBR suction cup with 3/8" female NPT fitting
  • Style: Bellows
  • Material: NBR
  • Thread Size: 3/8" female
  • Outside Diameter: 51.0
  • Internal Cleats: No
  • Number of Bellows: 1.5
  • Color: Black
  • Weight: .0505(lbs)
  • Includes Fitting?: Yes
✓ Recommended Replacement For: VC-32C1F 3/8 NPT
$6.45 ea.
In Stock!
Add

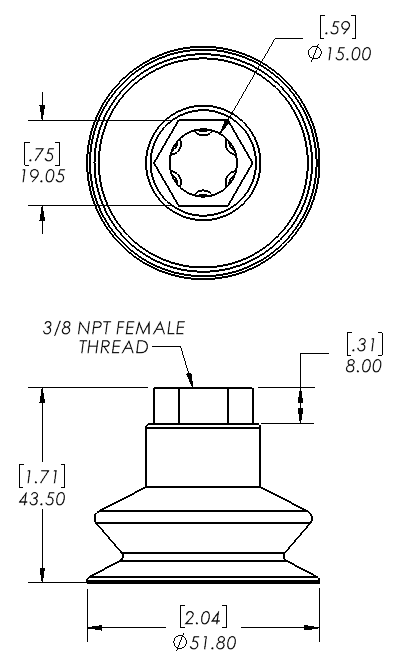

Dimensional Drawing

Download this product's CAD files

Download .ZIP

*Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.

Level of Vacuum (inHg)HorizontalVertical
6"Hg3.80 lbs.1.90 lbs.
18"Hg11.40 lbs.5.70 lbs.
27"Hg17.10 lbs.8.55 lbs.
Material NameWear ResistanceOilWeather & OzoneTemperature Range
NBR Good Good Excellent -40 to 266 °F (-40 to 130 °C)
