PU50-SIT-38MS

52mm flat universal FDA Silicone suction cup with 3/8 male NPT fitting with screen
  • Style: Flat
  • Material: Silicone
  • Thread Size: 3/8" male
  • Outside Diameter: 52.0
  • Internal Cleats: No
  • Color: Translucent
  • Weight: .055(lbs)
  • Includes Fitting?: Yes
✓ Recommended Replacement For: U50-2.20.05AE, 0101808
$19.29 ea.
Add

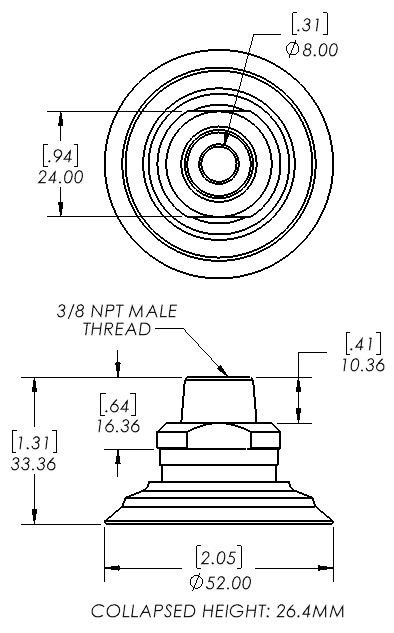

Dimensional Drawing

Download this product's CAD files

Download .ZIP

*Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.

Level of Vacuum (inHg)HorizontalVertical
6"Hg3.95 lbs.1.98 lbs.
18"Hg11.85 lbs.5.93 lbs.
27"Hg17.78 lbs.8.89 lbs.
Material NameWear ResistanceOilWeather & OzoneTemperature Range
Silicone Good Good Excellent -94 to 392 °F (-70 to 200 °C)
403.012
Fitting Image

Item#: 403.012

3/8 male NPT fitting with filter screen for P series 50 cups

Material: Aluminum   |   Thread Size: 3/8" male   |   Weight: .0310 lbs
★ INCLUDED WITH CUP
View Details
Drawing
Dimensional Drawing
×
×
