Home › Products › Air Amplifiers ›AA Series › AA75
Product Image

AA75

Adjustable Air Amplifier, 1 NPT vacuum port
  • Style: AA Series
  • Vacuum Flow: 110
  • Vacuum Port: 1"
  • Supply Port: 1/4 NPT
  • Air consumption: 30
  • Product Weight(lbs): 0.63
$243.72 ea.
Add
Additional Information and Specifications

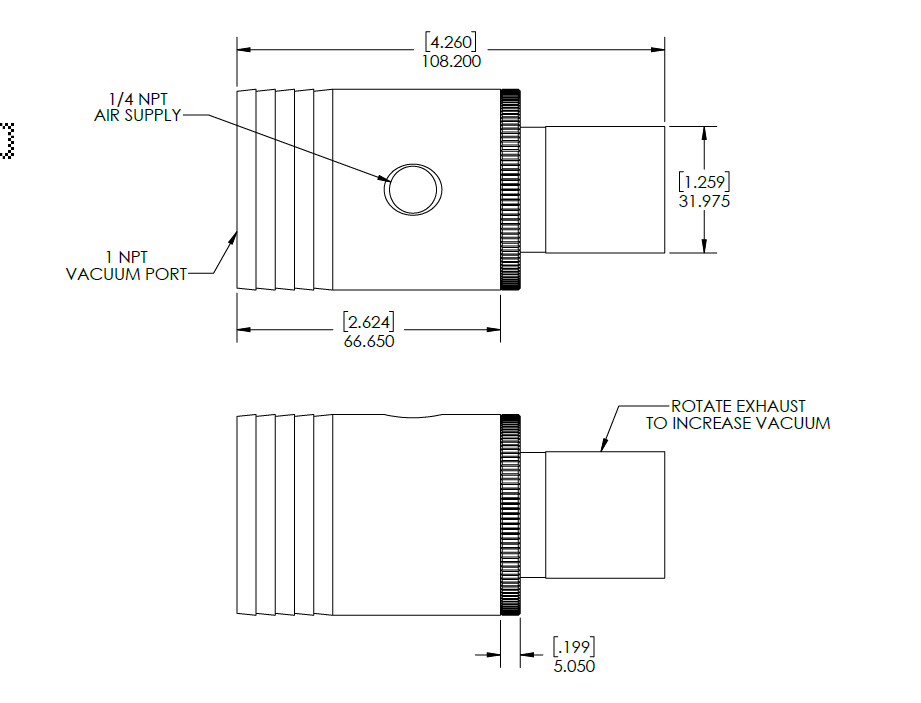

Dimensional Drawing

No CAD files available for this product

AA Amplifiers Performance Data - Imperial

Max Vacuum Level "HgMax Vacuum Flow - SCFMMax Exhaust Output - SCFM
5110140

AA Amplifiers Performance Data - Metric

Max Vacuum Level mbarMax Vacuum Flow - l/minMax Exhaust Output - l/min
16931153964
